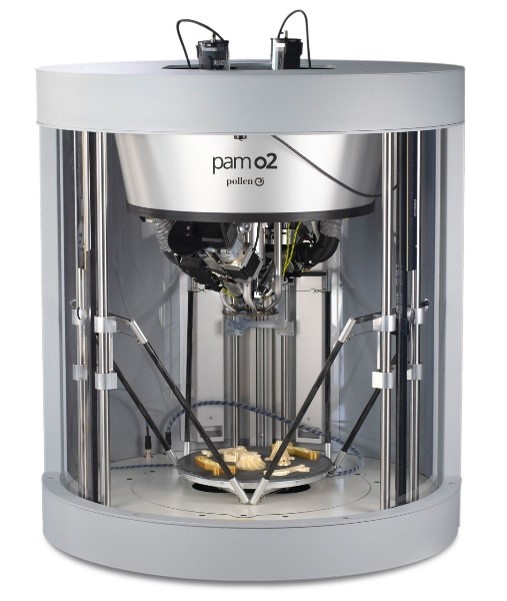

Extrusion-based 3D printing is one of the most common additive manufacturing methods, but the technology often requires materials to be fabricated to filaments, which limits the applicability. In addition, filament-based printing poses challenges such as back-pressure buildup or rough surface formation caused by flow instability. Pellet extrusion 3D printing is a versatile, filament-free capability that enables additive manufacturing of a variety of polymeric materials that are difficult to form filaments. This capability also enables prototype printing using new polymers or nanocomposites to assess their printability.

Technical Specifications:

• Two extruders for printing of hybrid structures.
• Can print most injection molding grade thermoplastics.
• Max. printing volume: 300 mm diameter x 300 mm height.
• 0.25 mm – 0.8 mm exit nozzle size.
• Printing resolution: 5 μm (XY) / 40 μm (Z).
• Maximum extrusion temperature: 450 °C.
• Maximum print bed temperature: 150 °C.
• Printing chamber temperature: up to 70 °C.
• Radiant disc for temperature control near printing area, up to 300 °C.
• Compatible with CAD object designs.

Contact: Kyungtae Kim
